 Recapping Bridges Pg 1 2 |
 |
 |
 |

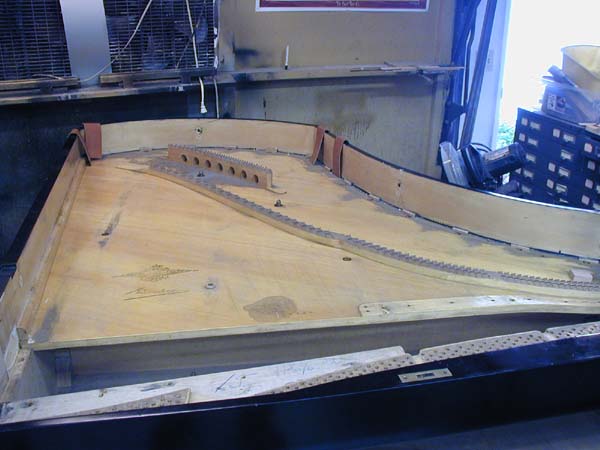

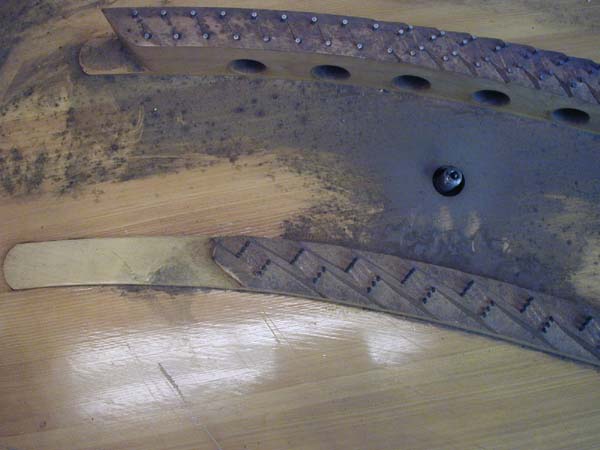

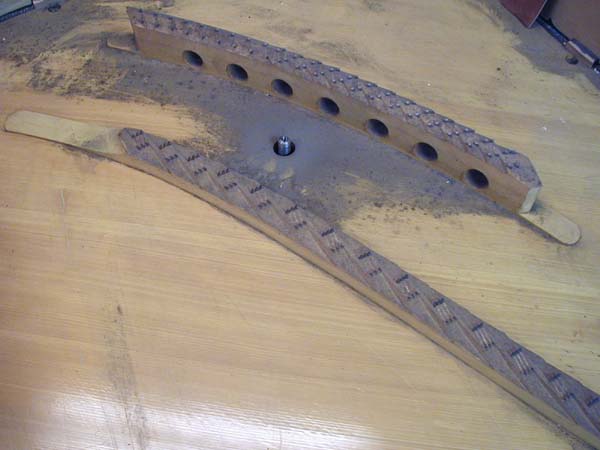

Above photos show bridges after removal of plate and strings. Bridges are rusty, moldy, and show surface cracks.
|
 |
 |

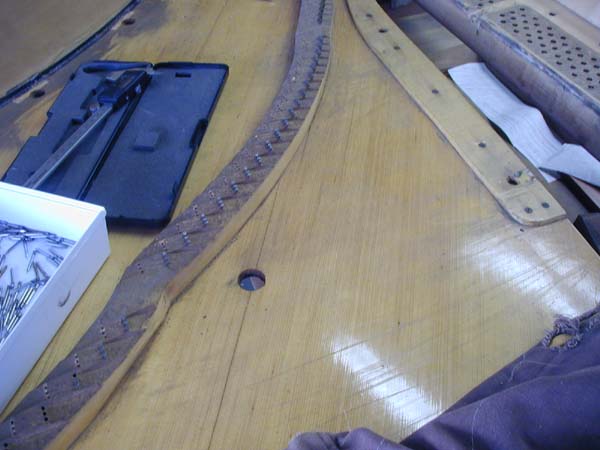

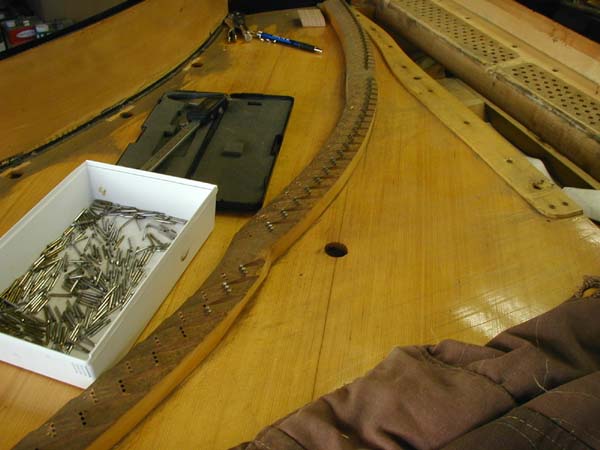

Removing old bridge pins.
|
 |

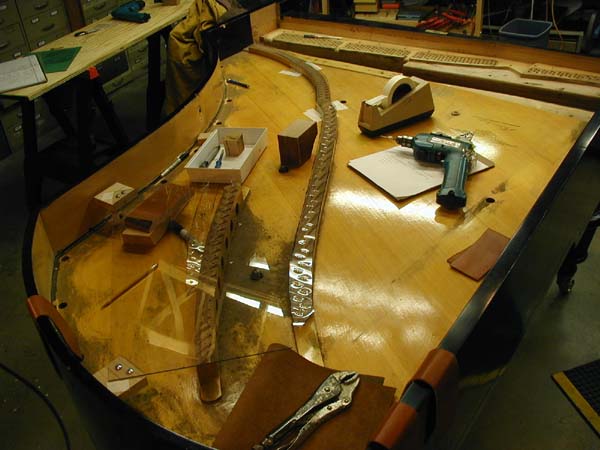

A Mylar pattern is made of the old bridge. Lexan locates bridges to the rim for relocation after new soundboard is installed.
|
 |

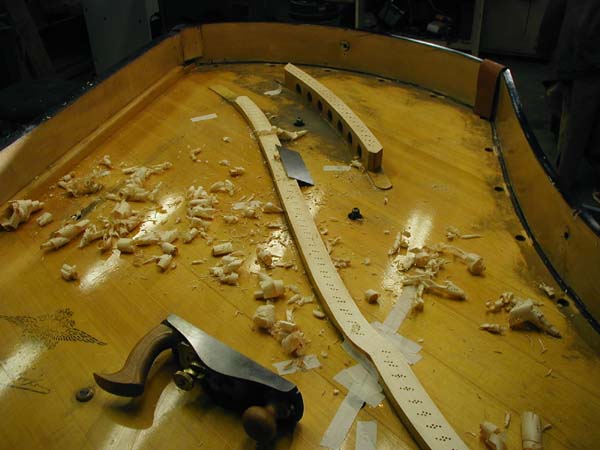

The tops of the old bridges are planed down to good wood.
|
 |

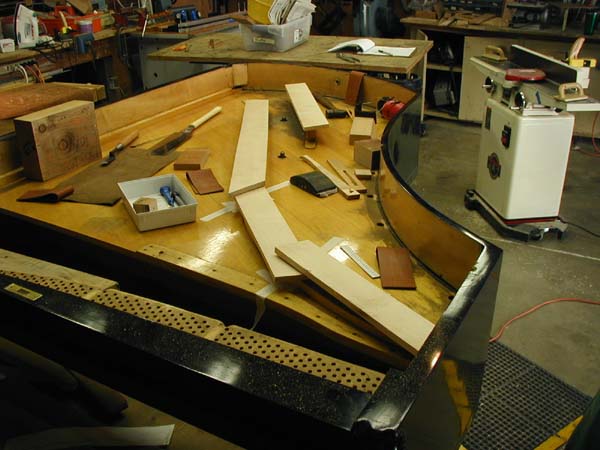

New quarter sawn Hard Rock Maple is selected and layed out. Special attention is giving to grain orientation.
|
 |

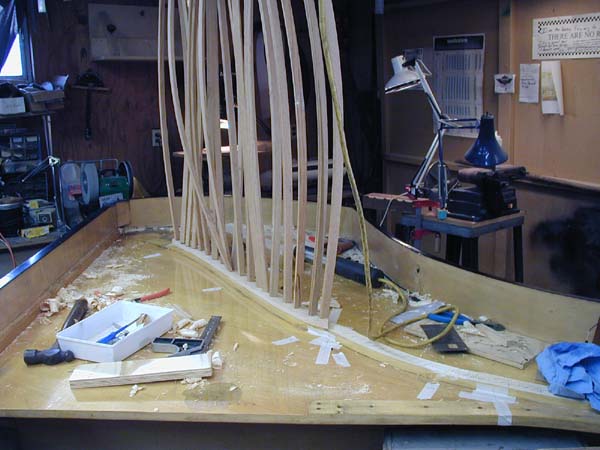

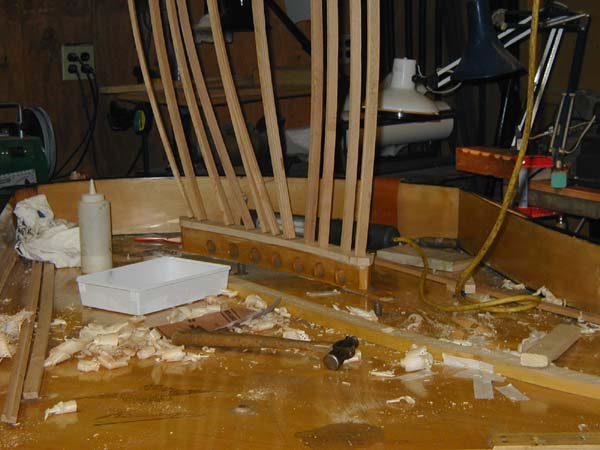

New bass bridge cap glue up. Clamping pressure is supplied by go bars.
|
 |

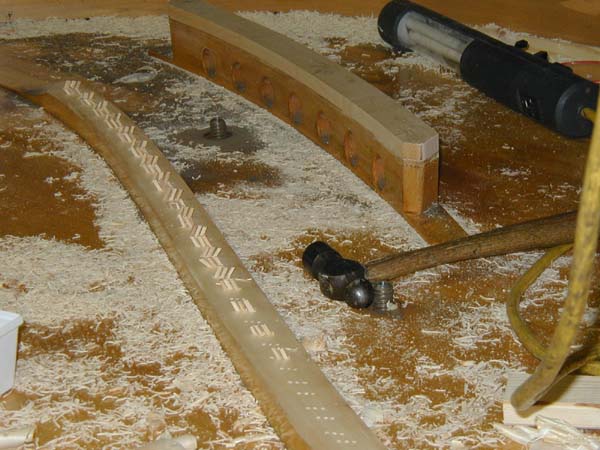

Shoe pegs are pounded in what remains of the bridge pin holes in the bridge root.
|
 |

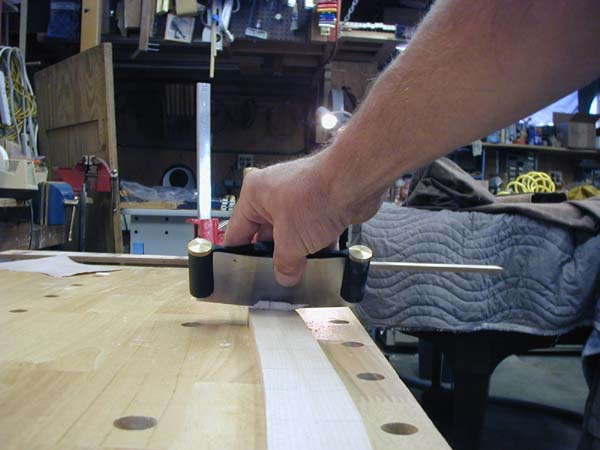

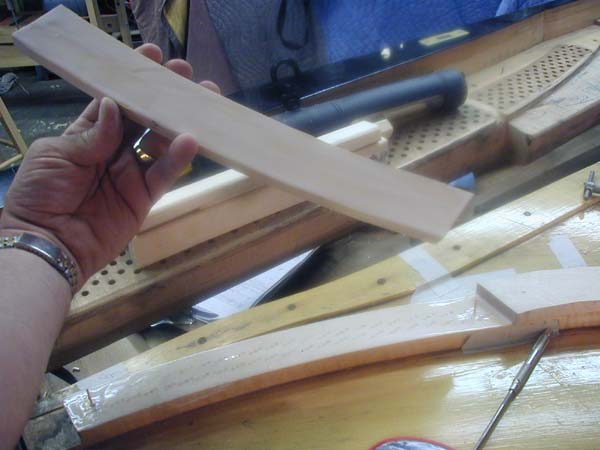

Prepping glue joint on new cap material.
|
 |

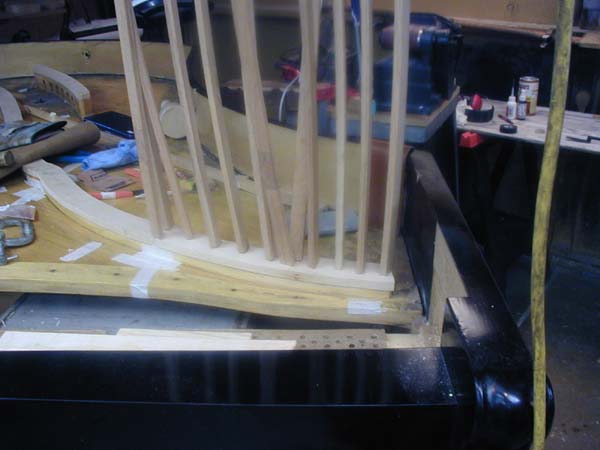

Tenor cap glue up.
|
 |

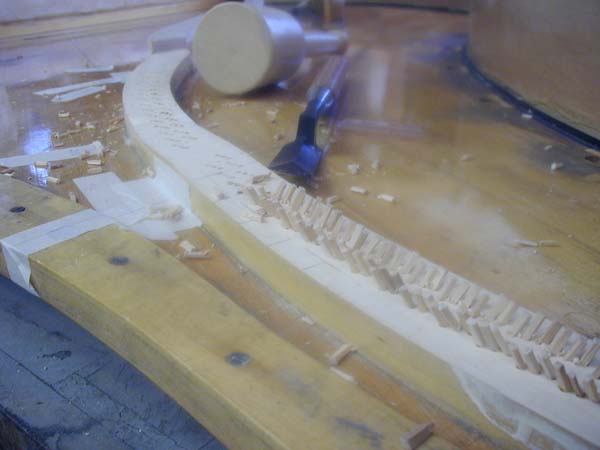

Cutting down pegs with a chisel.
|
 |

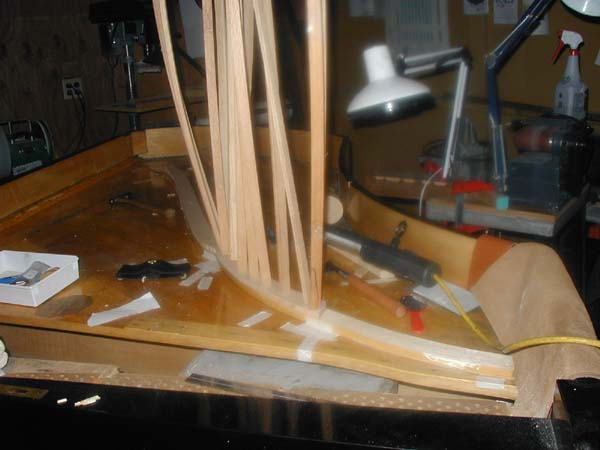

Alto cap glue up.
|
 |
 |
Treble glue up.
|
